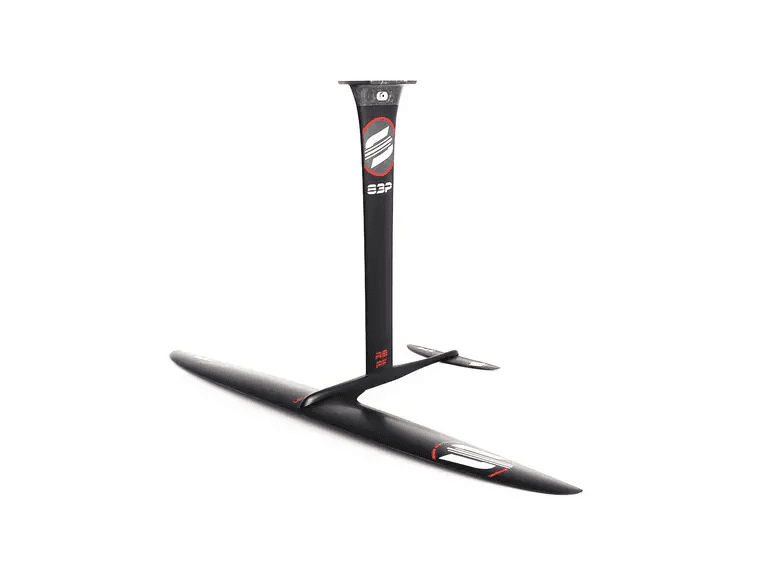

Sabfoil Leviathan 1550-370/83PL | Hydrofoil Set

COMPOSITION

M83PLK/PF – WL1550/PF – S370/PF – F663K

Bag and Q02K included

Recommended forDock-Start – SUP – Pumping – Freeride – Downwind

Take Off Speed 6 kn

Top End Speed (average 80kg user)10 – 12 kn

This hydrofoil set is a must-have for anyone looking to practice pump foil in very low wind conditions. The incredible efficiency makes it perfect also for flat water conditions and stand-up paddling.

The front wing (WL1550/PF) features a high aspect ratio, resulting in exceptional gliding and efficiency, and the profile favors easy take-off. The stiff mast (M83PLK/PF) reduces bending and torsion for maximum stability and control also during pumping sessions. The flat stabilizer (S370/PF) provides excellent maneuverability.

For those looking for easy starts, long glides, SUP sessions, or just looking for a fun day on flat water, the KL1550-370/83PL is a great choice.

The large size of the front wing makes this set unsuitable for jumps and freestyle.

Bag and Titanium Quick Release System (Q02K) included

Dimensions & Advanced specs

Front Wing – Span 1550 mm

Front Wing – Surface 2140 cm2

Front Wing – Volume 2757 cm3

Front Wing – Aspect Ratio 11,30

Front Wing – Root Chord 170 mm

Front Wing – Maximum Thickness 22,9 mm

Stabilizer – Span 370 mm

Stabilizer – Surface 195 cm2

Stabilizer – Volume 85 cm3

Stabilizer – Aspect Ratio 7,00

Stabilizer – Root Chord 67,5 mm

Stabilizer – Maximum Thickness 7,3 mm

Fuselage – Length 663 mm

Mast – Height 830 mm

Mast – Board Connection Carbon Plate

Foil Set – Weight (ca.) 4,71 kg
